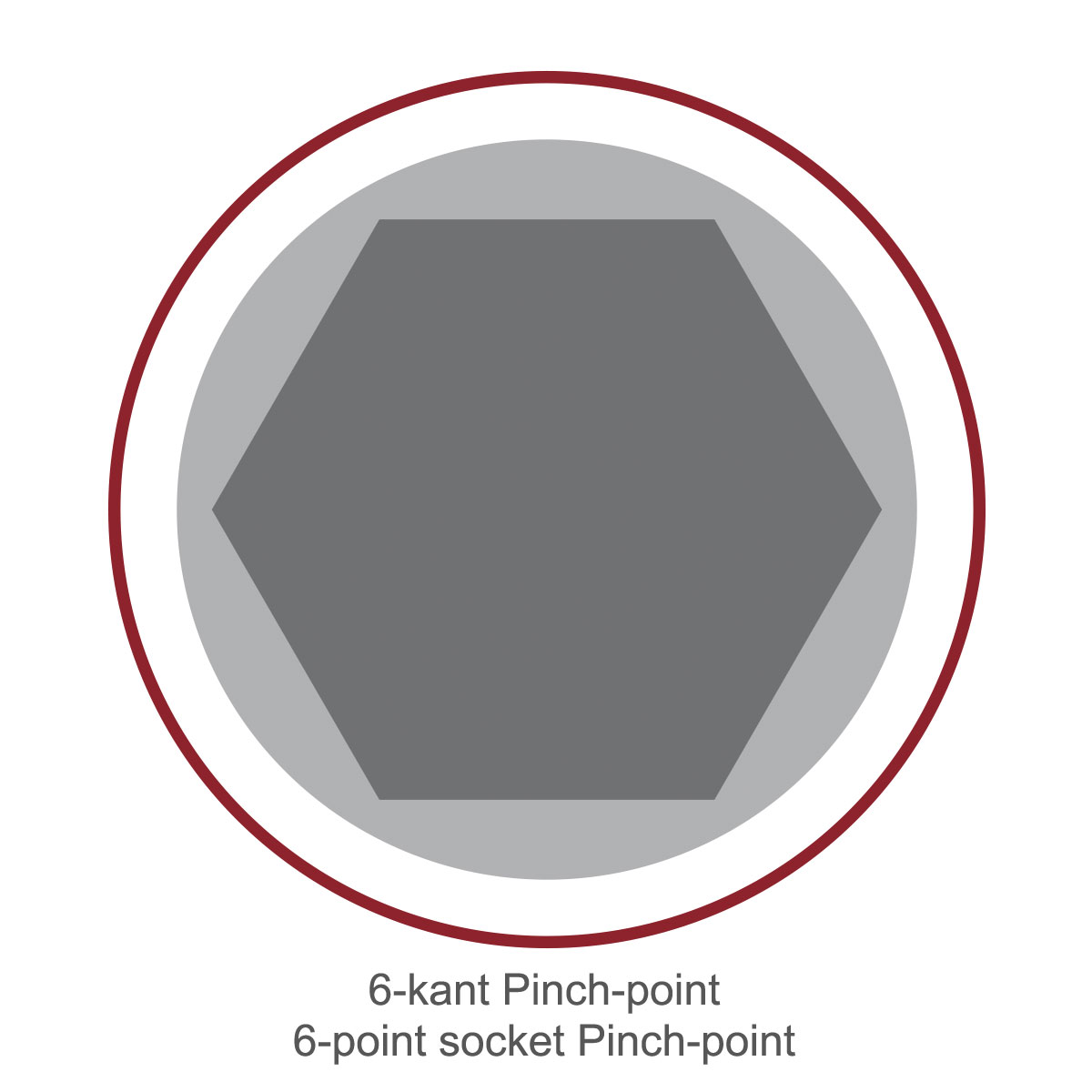

Steckschlüssel 6-kant L38, Pinch-point

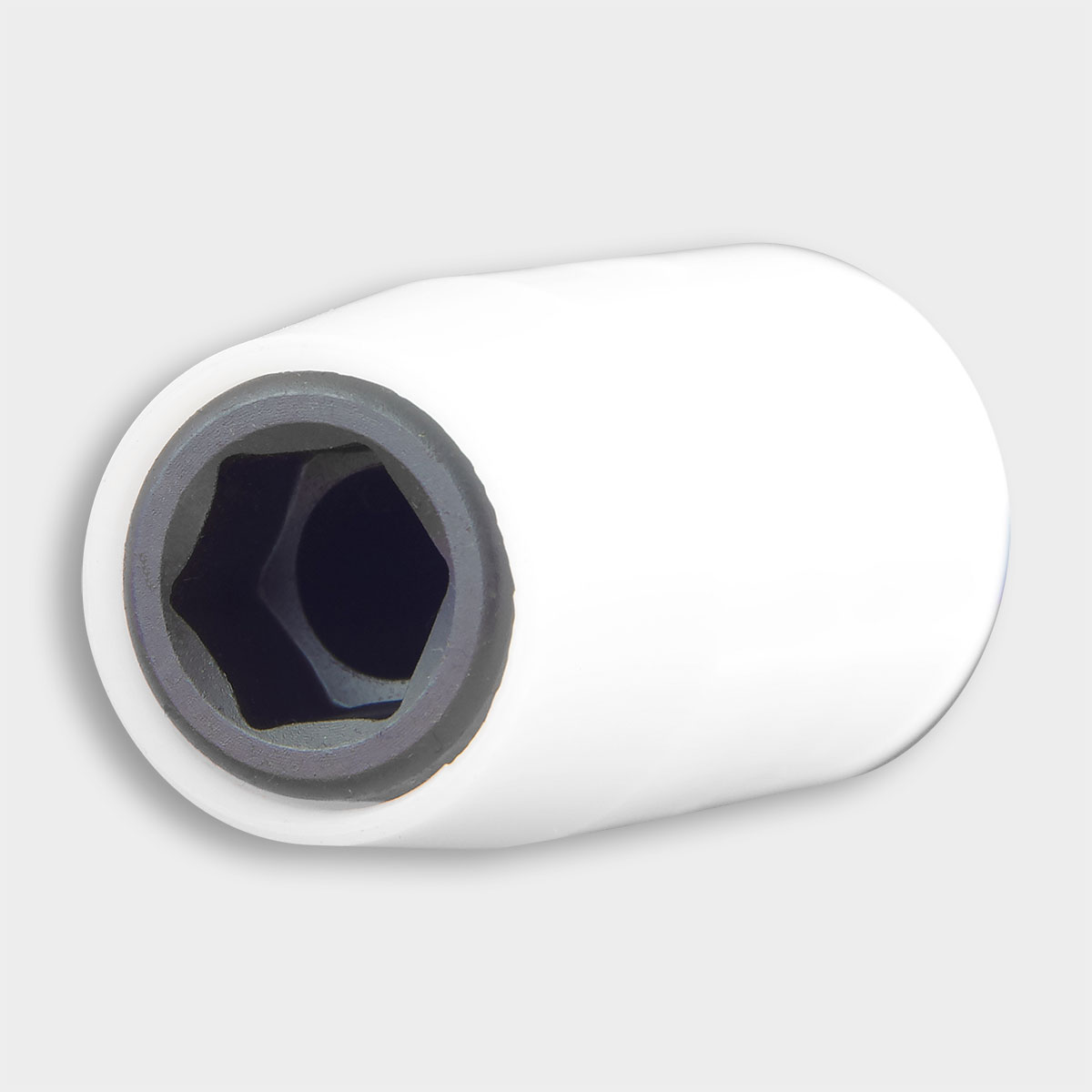

covertec Steckschlüssel mit 1/2" Antrieb für 6-kant Schraubenköpfe, Länge 38 mm mit Pinch-point.
Technische Daten & Ausführungen

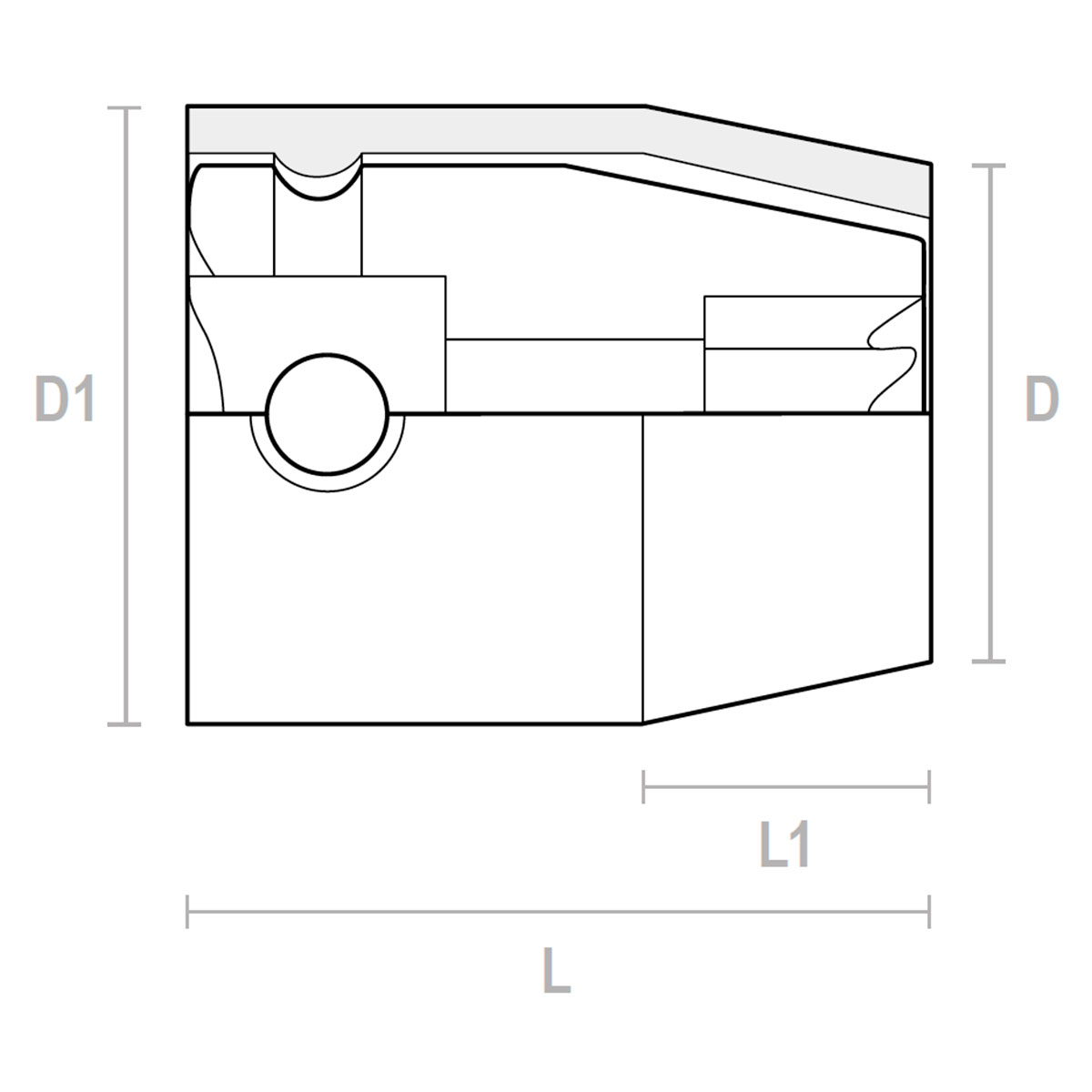

| Code | Antrieb | Abtrieb 1 | Länge 1 | Länge 2 | D1 | covertec /art | Ersatzhülsen | Schraubenkopf | D (Abtrieb) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9041090-pp | 1/2`` | SW8 | 38 | 18 | 28 | Pinch-point | 9051090-pp | 6-kant | 16,5 |
|
| 9041091-pp | 1/2`` | SW9 | 38 | 18 | 28 | Pinch-point | 9051091-pp | 6-kant | 18 |
|
| 9041050-pp | 1/2`` | SW10 | 38 | 18 | 28 | Pinch-point | 9051050-pp | 6-kant | 19 |
|
| 9041051-pp | 1/2`` | SW11 | 38 | 18 | 28 | Pinch-point | 9051051-pp | 6-kant | 20,5 |
|
| 9041094-pp | 1/2`` | SW12 | 38 | 18 | 29 | Pinch-point | 9051094-pp | 6-kant | 23,6 |
|
| 9041019-pp | 1/2`` | SW13 | 38 | 16 | 28 | Pinch-point | 9051019-pp | 6-kant | 25 |
|
| 9041020-pp | 1/2`` | SW14 | 38 | 14 | 28 | Pinch-point | 9051020-pp | 6-kant | 25,5 |
|
| 9041021-pp | 1/2`` | SW15 | 38 | 17 | 34 | Pinch-point | 9051021-pp | 6-kant | 28 |
|
| 9041022-pp | 1/2`` | SW16 | 38 | 14 | 34 | Pinch-point | 9051022-pp | 6-kant | 28 |
|
| 9041023-pp | 1/2`` | SW17 | 38 | 13,5 | 34 | Pinch-point | 9051023-pp | 6-kant | 30 |
|
| 9041042-pp | 1/2`` | SW18 | 38 | 13,5 | 34 | Pinch-point | 9051042-pp | 6-kant | 30 |
|
| 9041024-pp | 1/2`` | SW19 | 38 | 38 | 34 | Pinch-point | 9051024-pp | 6-kant | 34 |
|
| 9041037-pp | 1/2`` | SW21 | 38 | 38 | 34 | Pinch-point | 9051037-pp | 6-kant | 34 |
|
| 9041095-pp | 1/2`` | SW22 | 38 | 38 | 34 | Pinch-point | 9051095-pp | 6-kant | 34 |
|
| 9041096-pp | 1/2`` | SW24 | 38 | 25 | 34 | Pinch-point | 9051096-pp | 6-kant | 27,5 |
|
| 9041097-pp | 1/2`` | SW27 | 40 | 23 | 34 | Pinch-point | 9051097-pp | 6-kant | 42 |
|
| 9041098-pp | 1/2`` | SW30 | 40 | 23 | 34 | Pinch-point | 9051098-pp | 6-kant | 46 |
|
Anwendungsgebiete
Vielfältige Einsatzmöglichkeiten
Zuhause in fast jeder Montagelinie. Zuverlässig mit hohen Standzeiten und dem covertec-Schutzmechnismus.
