Steckschlüssel Surface-drive L38, Pinch-point

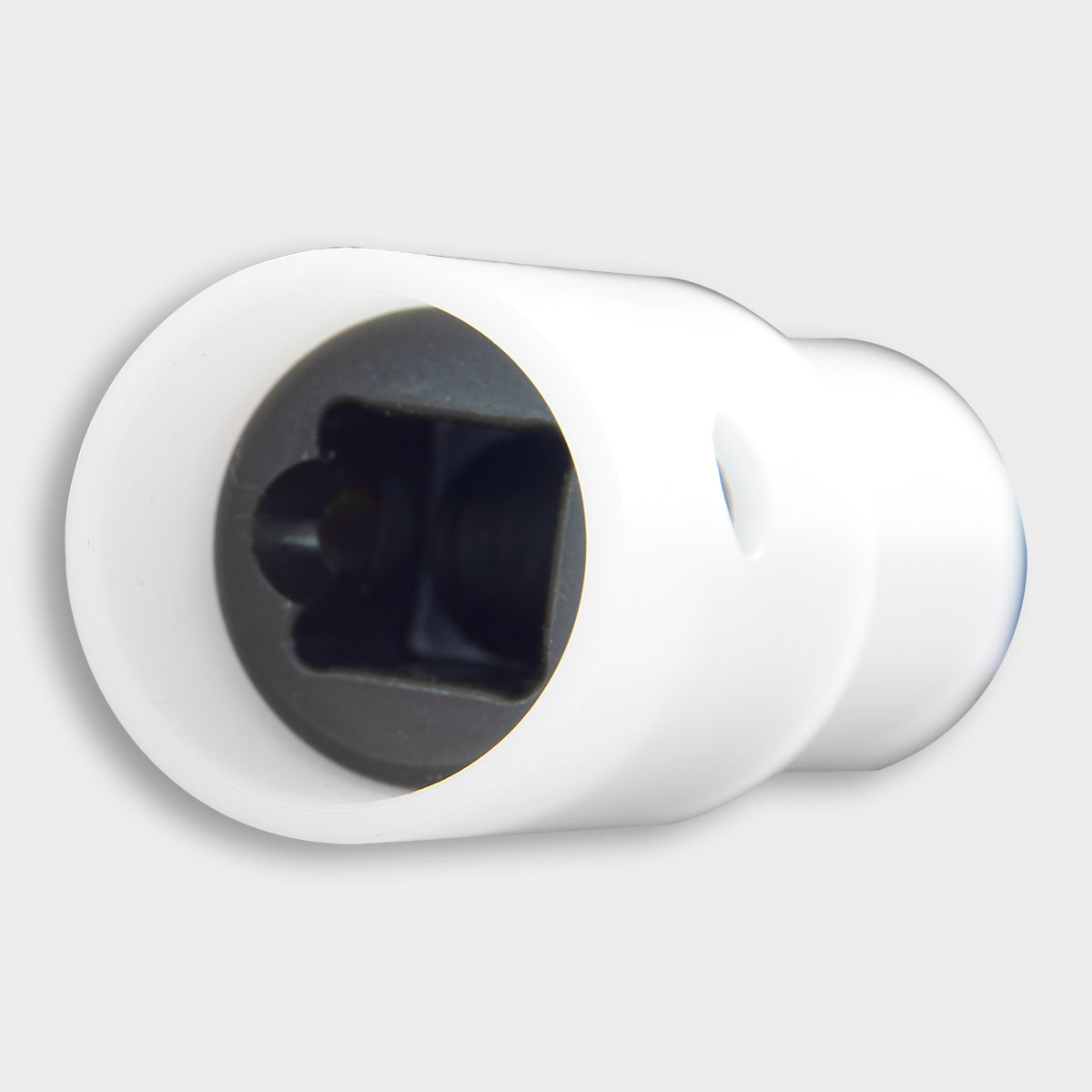

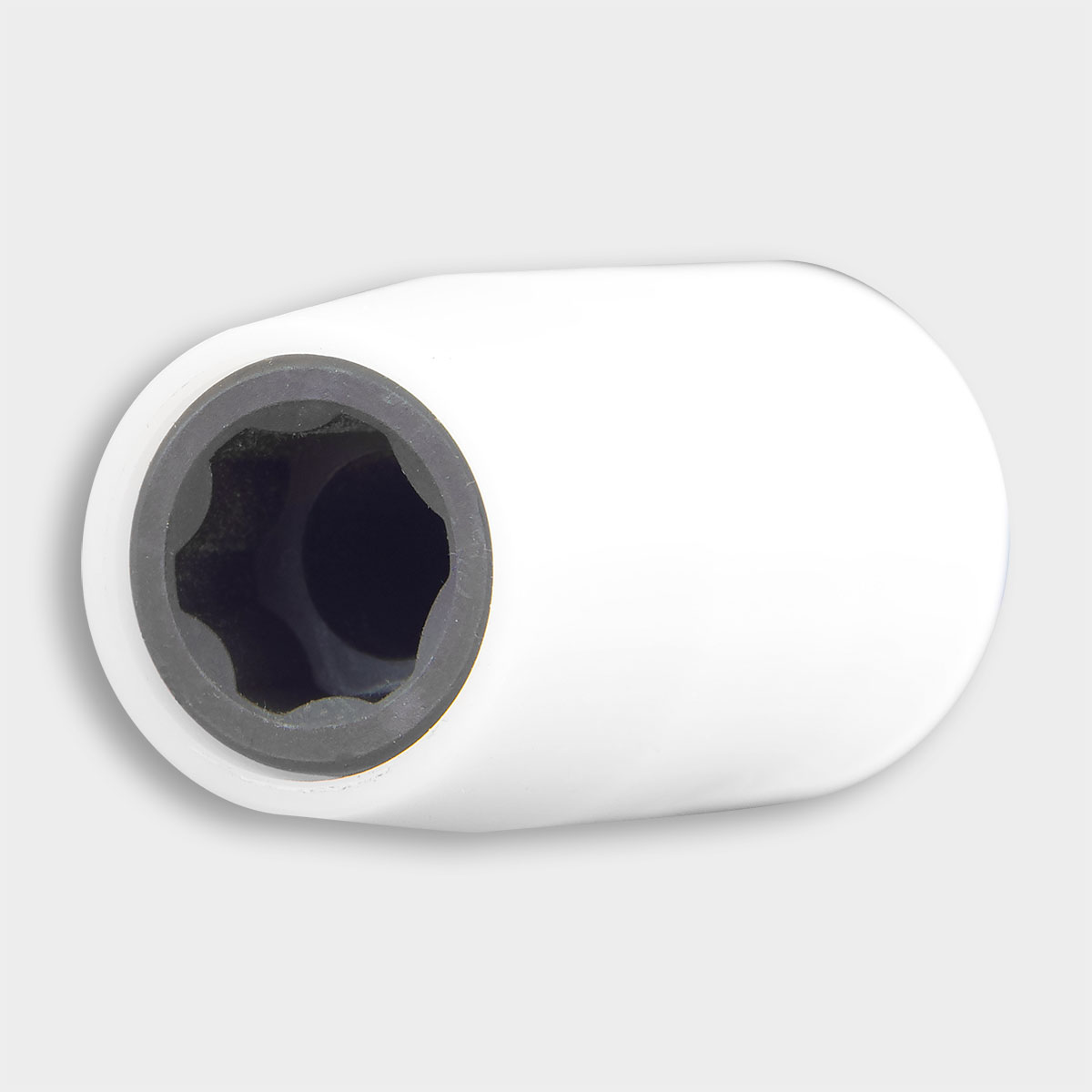

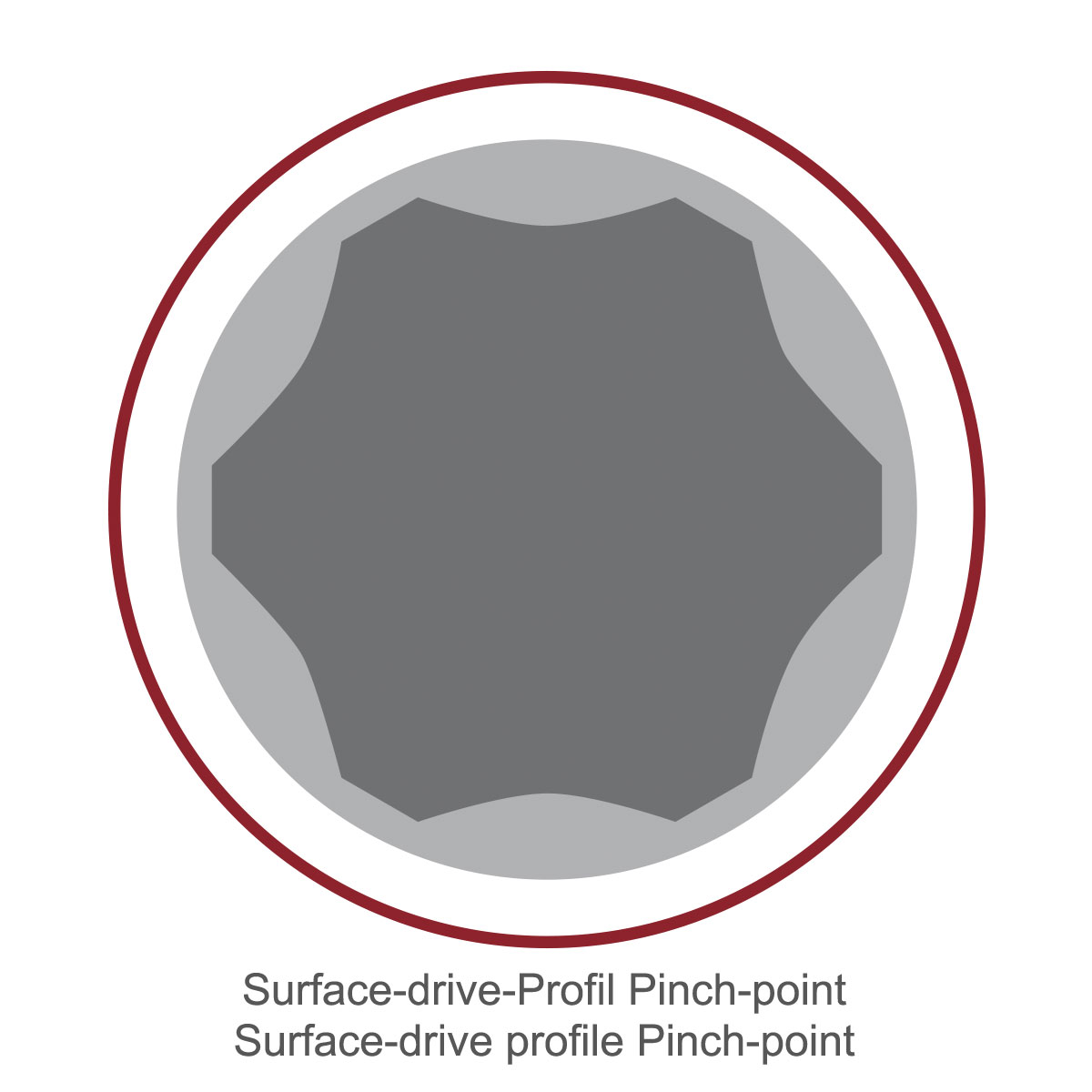

covertec Steckschlüssel mit 1/2" Antrieb für Surface-drive Schraubenköpfe, Länge 38 mm und Pinch-point.
Technische Daten & Ausführungen

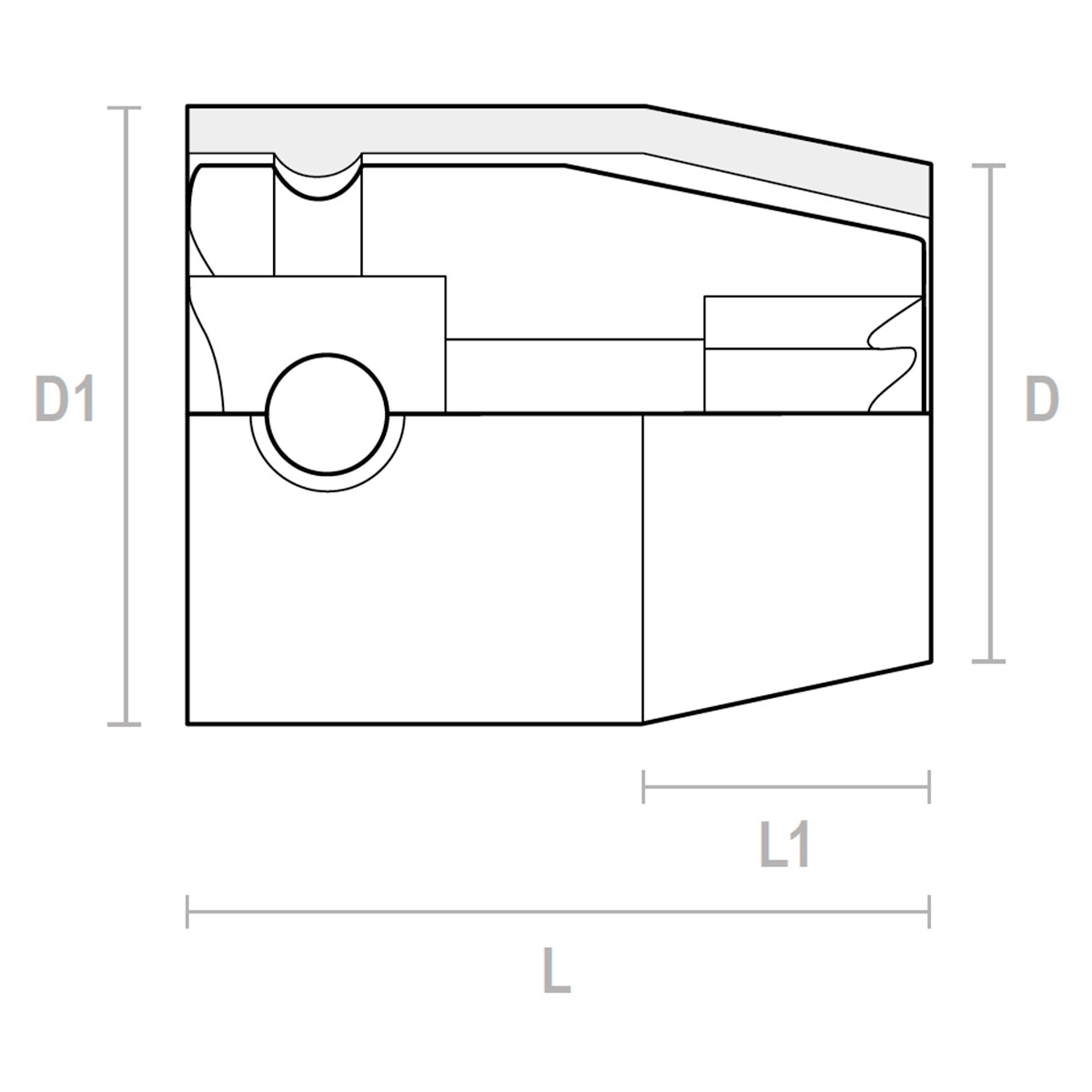

| Code | Antrieb | Abtrieb 1 | Länge 1 | Länge 2 | D1 | covertec /art | Ersatzhülsen | Schraubenkopf | D (Abtrieb) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9041090-4-pp | 1/2`` | SW8sd | 38 | 18 | 28 | Pinch-point | 9051090-4-pp | Surface-drive | 16,5 |
|
| 9041091-4-pp | 1/2`` | SW9sd | 38 | 18 | 28 | Pinch-point | 9051091-4-pp | Surface-drive | 18 |
|
| 9041050-4-pp | 1/2`` | SW10sd | 38 | 18 | 28 | Pinch-point | 9051050-4-pp | Surface-drive | 19 |
|
| 9041051-4-pp | 1/2`` | SW11sd | 38 | 18 | 28 | Pinch-point | 9051051-4-pp | Surface-drive | 20,5 |
|
| 9041094-4-pp | 1/2`` | SW12sd | 38 | 18 | 29 | Pinch-point | 9051094-4-pp | Surface-drive | 23,6 |
|
| 9041019-4-pp | 1/2`` | SW13sd | 38 | 16 | 28 | Pinch-point | 9051019-4-pp | Surface-drive | 25 |
|
| 9041020-4-pp | 1/2`` | SW14sd | 38 | 14 | 28 | Pinch-point | 9051020-4-pp | Surface-drive | 25,5 |
|
| 9041021-4-pp | 1/2`` | SW15sd | 38 | 17 | 34 | Pinch-point | 9051021-4-pp | Surface-drive | 28 |
|
| 9041022-4-pp | 1/2`` | SW16sd | 38 | 14 | 34 | Pinch-point | 9051022-4-pp | Surface-drive | 28 |
|
| 9041023-4-pp | 1/2`` | SW17sd | 38 | 13,5 | 34 | Pinch-point | 9051023-4-pp | Surface-drive | 30 |
|
| 9041042-4-pp | 1/2`` | SW18sd | 38 | 13,5 | 34 | Pinch-point | 9051042-4-pp | Surface-drive | 30 |
|
| 9041024-4-pp | 1/2`` | SW19sd | 38 | 38 | 34 | Pinch-point | 9051024-4-pp | Surface-drive | 34 |
|
| 9041037-4-pp | 1/2`` | SW21sd | 38 | 38 | 34 | Pinch-point | 9051037-4-pp | Surface-drive | 34 |
|
| 9041095-4-pp | 1/2`` | SW22sd | 38 | 38 | 34 | Pinch-point | 9051095-4-pp | Surface-drive | 34 |
|
| 9041096-4-pp | 1/2`` | SW24sd | 38 | 25 | 34 | Pinch-point | 9051096-4-pp | Surface-drive | 27,5 |
|
| 9041097-4-pp | 1/2`` | SW27sd | 40 | 23 | 34 | Pinch-point | 9051097-4-pp | Surface-drive | 42 |
|
| 9041098-4-pp | 1/2`` | SW30sd | 40 | 23 | 34 | Pinch-point | 9051098-4-pp | Surface-drive | 46 |
|
Anwendungsgebiete
Vielfältige Einsatzmöglichkeiten
Zuhause in fast jeder Montagelinie. Zuverlässig mit hohen Standzeiten und dem covertec-Schutzmechnismus.
