Steckschlüssel 6-kant 1", Pinch-point
covertec Steckschlüssel mit 1 Zoll Antrieb für 6-kant Schraubenköpfe mit Pinch-point.
Technische Daten & Ausführungen

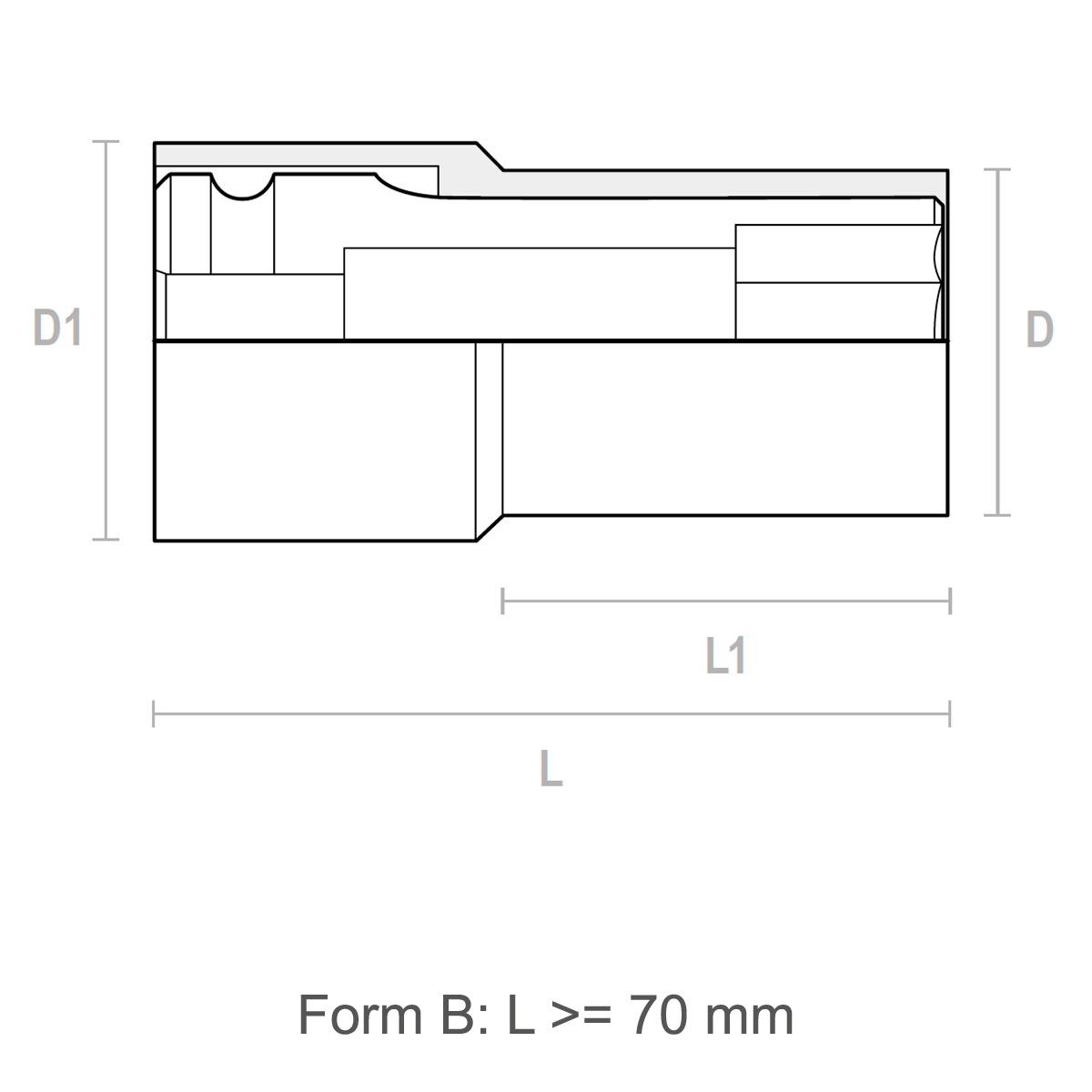

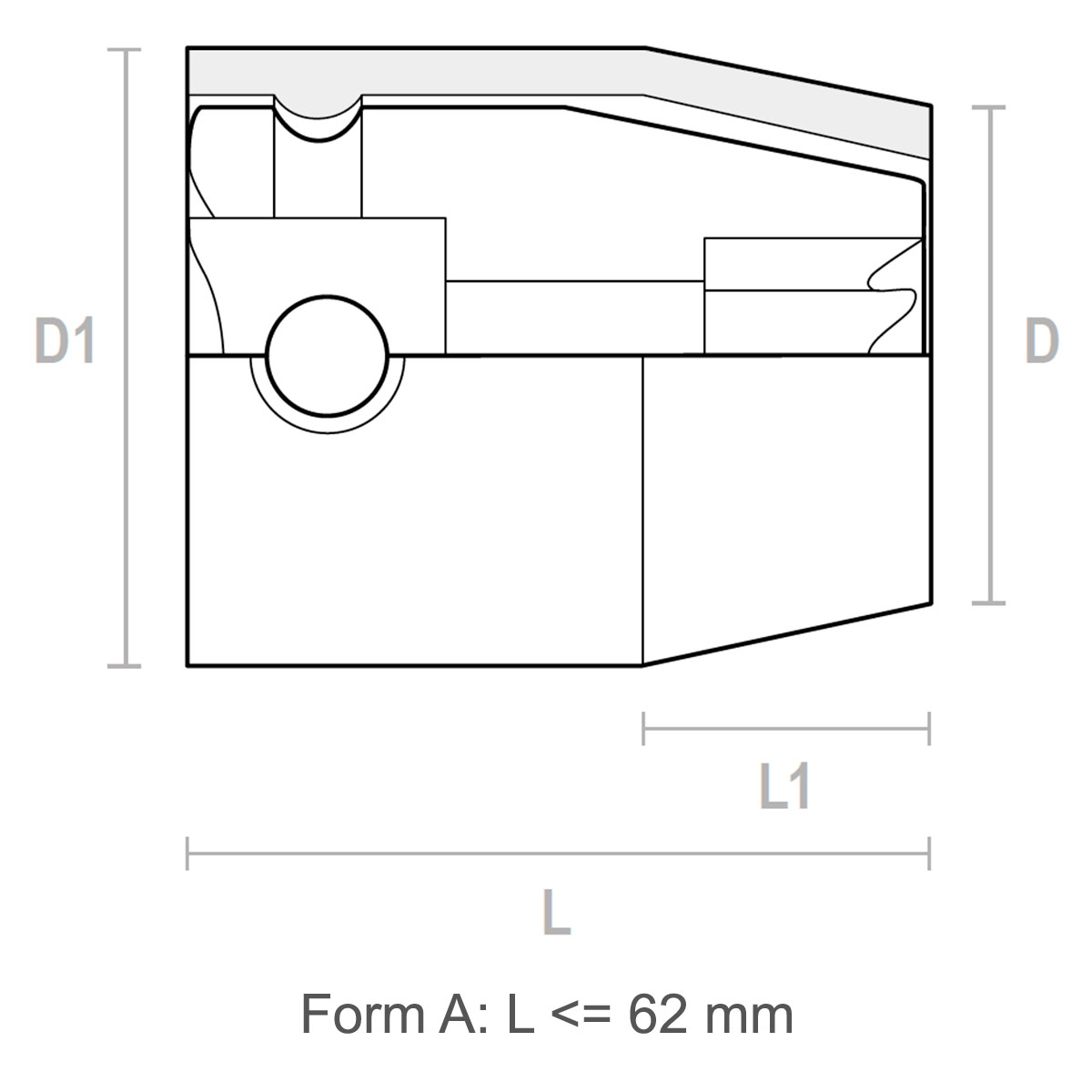

| Code | Antrieb | Abtrieb 1 | Länge 1 | Länge 2 | D1 | covertec /art | Ersatzhülsen | Schraubenkopf | D (Abtrieb) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9041158-pp | 1`` | SW24 | 57 | 25 | 59 | Pinch-point | 9051158-pp | 6-kant | 45 |
|
| 9041159-pp | 1`` | SW27 | 57 | 25 | 59 | Pinch-point | 9051159-pp | 6-kant | 50 |
|
| 9041160-pp | 1`` | SW30 | 62 | 24 | 59 | Pinch-point | 9051160-pp | 6-kant | 52 |
|
| 9041161-pp | 1`` | SW32 | 62 | 24 | 59 | Pinch-point | 9051161-pp | 6-kant | 55 |
|
| 9041162-pp | 1`` | SW34 | 62 | 25 | 59 | Pinch-point | 9051162-pp | 6-kant | 56 |
|
| 9041163-pp | 1`` | SW36 | 62 | 30 | 59 | Pinch-point | 9051163-pp | 6-kant | 60 |
|
| 9041164-pp | 1`` | SW41 | 70 | 30 | 59 | Pinch-point | 9051164-pp | 6-kant | 66 |
|
| 9041165-pp | 1`` | SW46 | 70 | 30 | 59 | Pinch-point | 9051165-pp | 6-kant | 72 |
|
| 9041166-pp | 1`` | SW50 | 70 | 30 | 59 | Pinch-point | 9051166-pp | 6-kant | 78 |
|
| 9041167-pp | 1`` | SW55 | 75 | 30 | 59 | Pinch-point | 9051167-pp | 6-kant | 80 |
|
| 9041168-pp | 1`` | SW60 | 75 | 30 | 59 | Pinch-point | 9051168-pp | 6-kant | 96 |
|
| 9041169-pp | 1`` | SW65 | 75 | 30 | 59 | Pinch-point | 9051169-pp | 6-kant | 101 |
|
| 9041170-pp | 1`` | SW22 | 108 | 55 | 59 | Pinch-point | 9051170-pp | 6-kant | 42 |
|
| 9041171-pp | 1`` | SW24 | 108 | 55 | 59 | Pinch-point | 9051171-pp | 6-kant | 45 |
|
| 9041172-pp | 1`` | SW27 | 108 | 58 | 59 | Pinch-point | 9051172-pp | 6-kant | 49 |
|
| 9041173-pp | 1`` | SW30 | 108 | 60 | 59 | Pinch-point | 9051173-pp | 6-kant | 55 |
|
| 9041174-pp | 1`` | SW32 | 108 | 68 | 59 | Pinch-point | 9051174-pp | 6-kant | 55,5 |
|
| 9041175-pp | 1`` | SW34 | 108 | 68 | 59 | Pinch-point | 9051175-pp | 6-kant | 57 |
|
| 9041176-pp | 1`` | SW36 | 108 | 60 | 59 | Pinch-point | 9051176-pp | 6-kant | 61 |
|
| 9041177-pp | 1`` | SW41 | 108 | 60 | 59 | Pinch-point | 9051177-pp | 6-kant | 67 |
|
| 9041178-pp | 1`` | SW46 | 108 | 60 | 59 | Pinch-point | 9051178-pp | 6-kant | 73 |
|
| 9041179-pp | 1`` | SW50 | 108 | 60 | 59 | Pinch-point | 9051179-pp | 6-kant | 78 |
|
| 9041180-pp | 1`` | SW55 | 108 | 60 | 59 | Pinch-point | 9051180-pp | 6-kant | 80 |
|
| 9041181-pp | 1`` | SW60 | 108 | 60 | 59 | Pinch-point | 9051181-pp | 6-kant | 96 |
|
| 9041182-pp | 1`` | SW65 | 108 | 60 | 67 | Pinch-point | 9051182-pp | 6-kant | 101 |
|
Anwendungsgebiete
Vielfältige Einsatzmöglichkeiten
Zuhause in fast jeder Montagelinie. Zuverlässig mit hohen Standzeiten und dem covertec-Schutzmechnismus.
