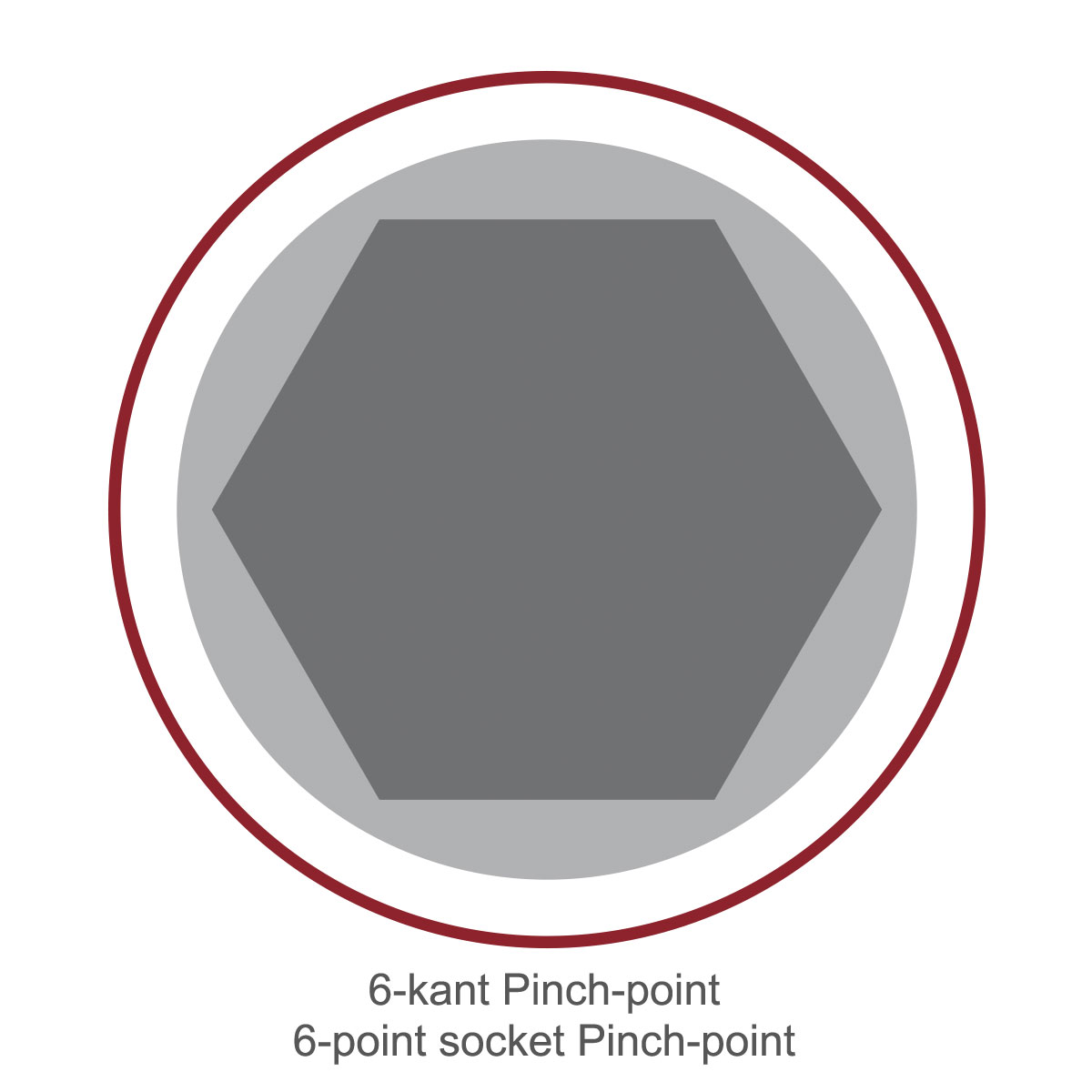

Steckschlüssel 6-kant L32, Pinch-point

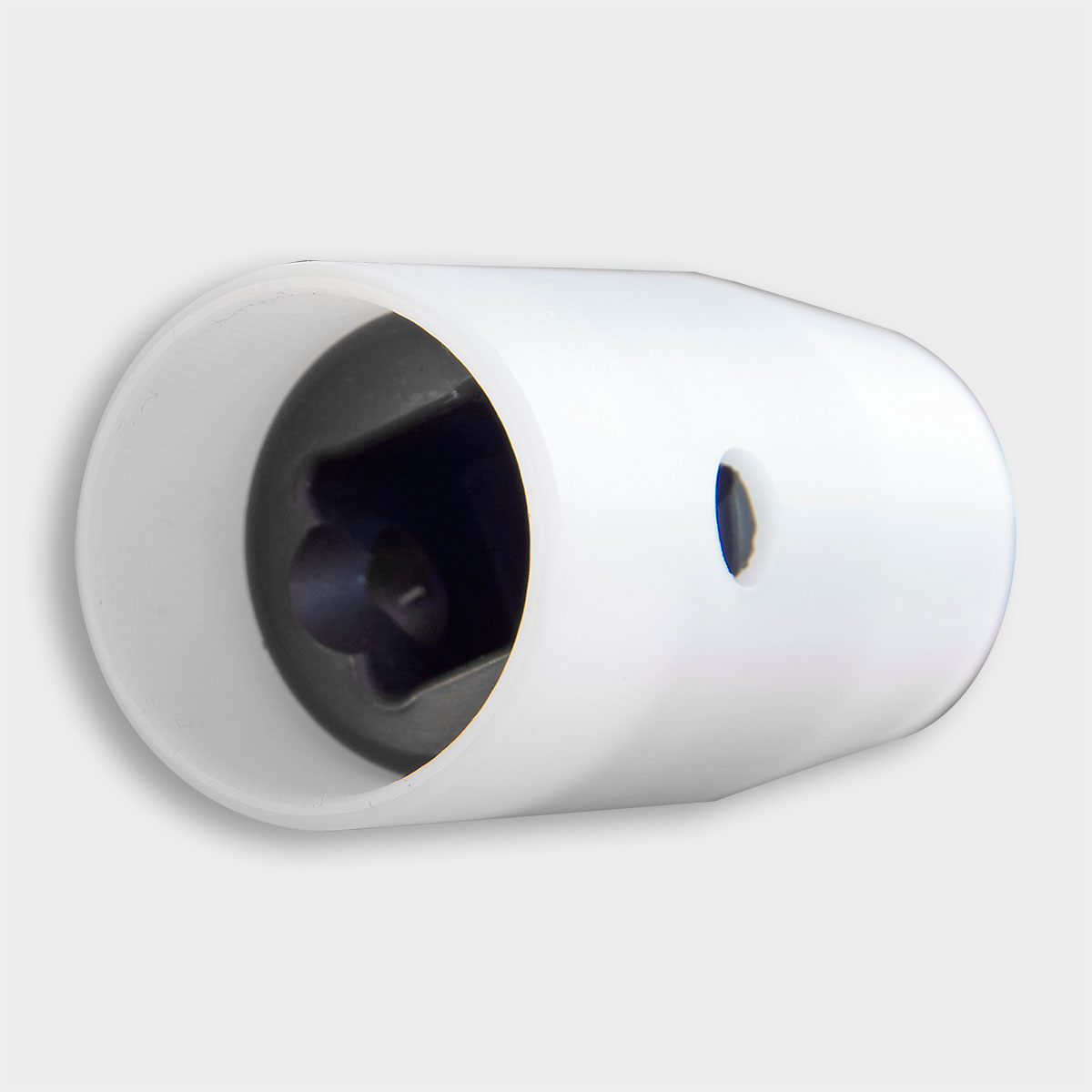

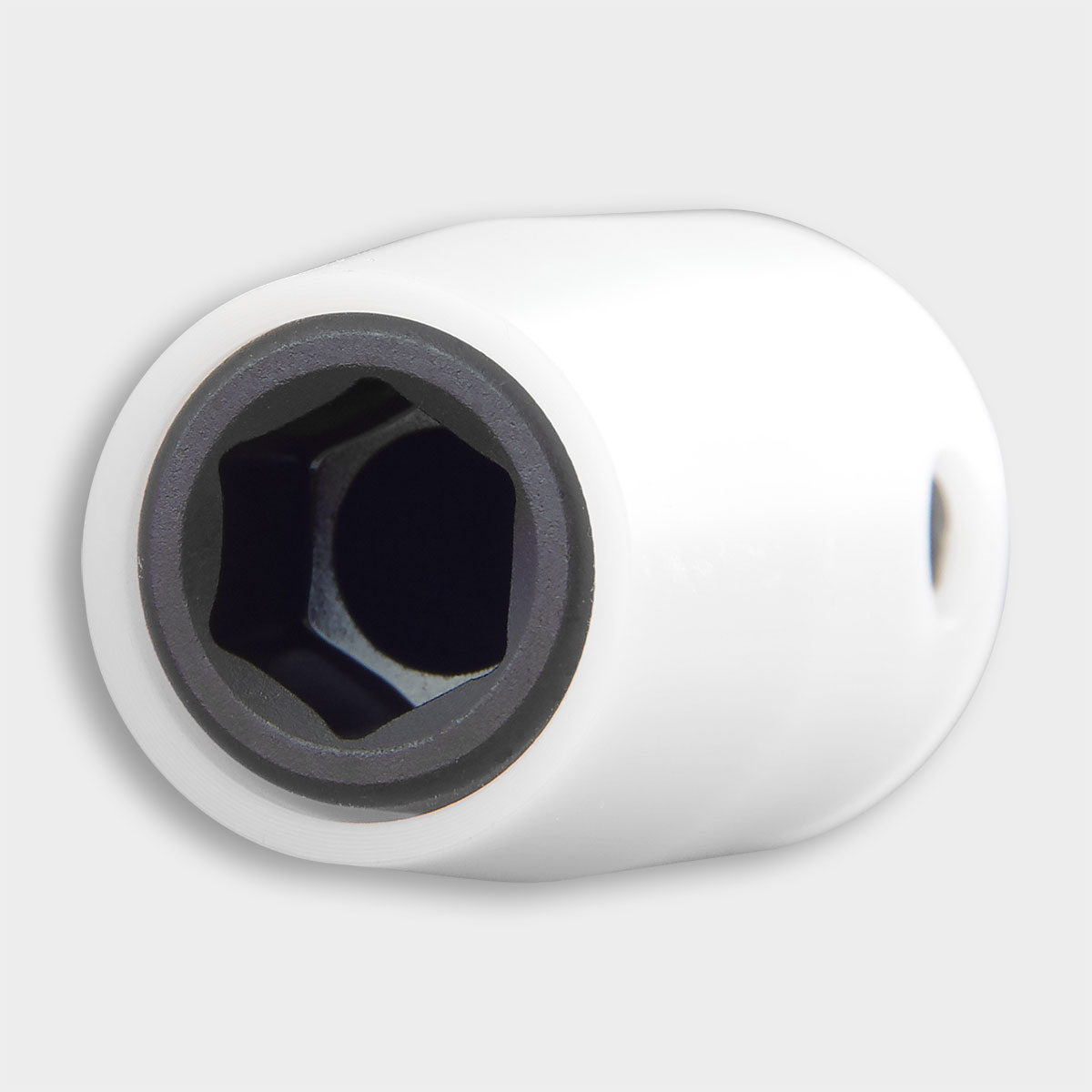

covertec Steckschlüssel mit 3/8" Antrieb für 6-kant Schraubenköpfe, Länge 32 mm mit Pinchpoint.
Technische Daten & Ausführungen

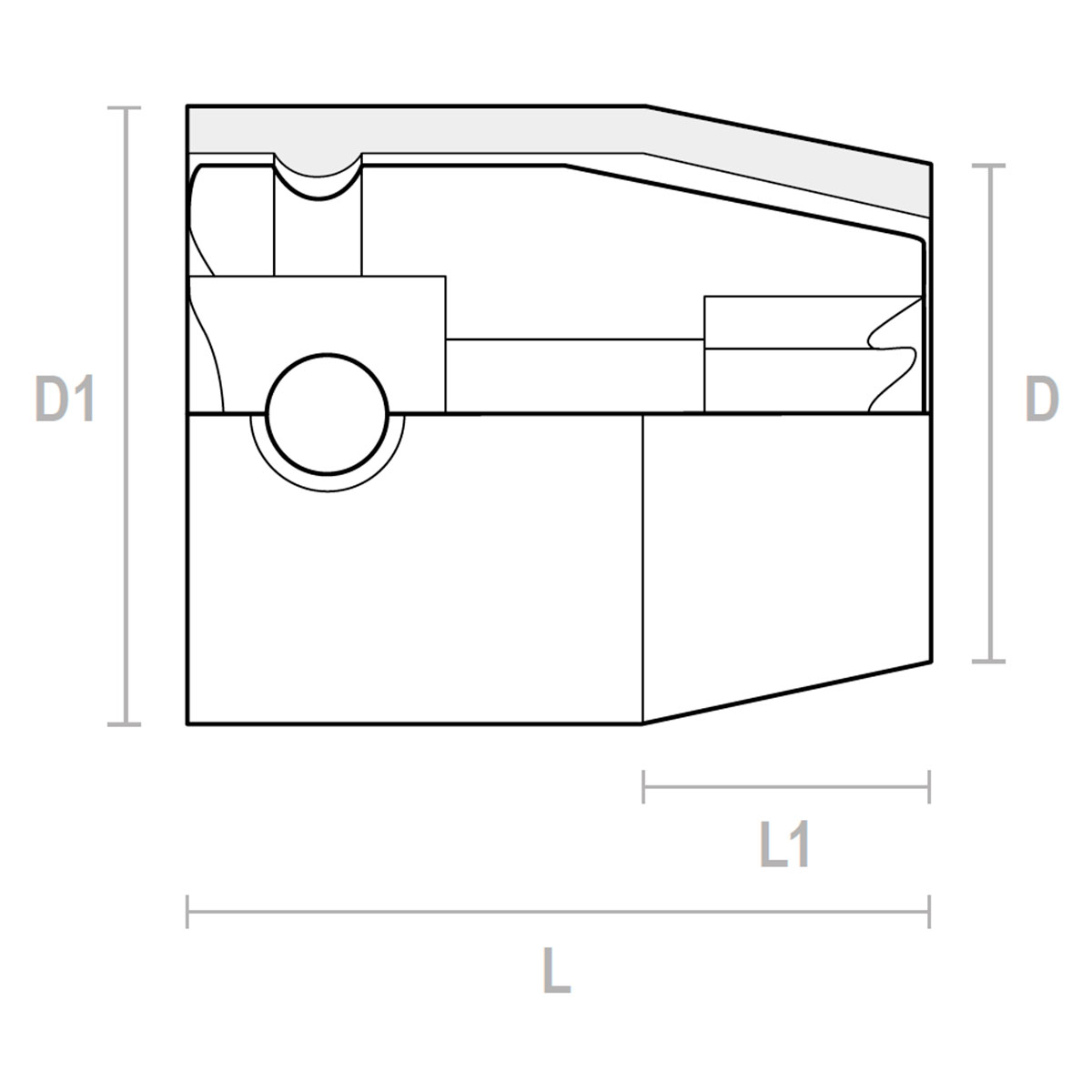

| Code | Antrieb | Abtrieb 1 | Länge 1 | Länge 2 | D1 | covertec /art | Ersatzhülsen | Schraubenkopf | D (Abtrieb) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9041253-pp | 3/8`` | SW7 | 32 | 13 | 22 | Pinch-point | 9051253-pp | 6-kant | 16 |
|
| 9041063-pp | 3/8`` | SW8 | 32 | 11 | 22 | Pinch-point | 9051063-pp | 6-kant | 16,5 |
|
| 9041064-pp | 3/8`` | SW9 | 32 | 11 | 22 | Pinch-point | 9051064-pp | 6-kant | 18 |
|
| 9041006-pp | 3/8`` | SW10 | 32 | 14 | 22 | Pinch-point | 9051006-pp | 6-kant | 19 |
|
| 9041048-pp | 3/8`` | SW11 | 32 | 16,5 | 22 | Pinch-point | 9051048-pp | 6-kant | 20 |
|
| 9041049-pp | 3/8`` | SW12 | 32 | 32 | 22 | Pinch-point | 9051049-pp | 6-kant | 22 |
|
| 9041007-pp | 3/8`` | SW13 | 32 | 32 | 25 | Pinch-point | 9051007-pp | 6-kant | 25 |
|
| 9041008-pp | 3/8`` | SW14 | 32 | 32 | 25 | Pinch-point | 9051008-pp | 6-kant | 25 |
|
| 9041009-pp | 3/8`` | SW15 | 32 | 32 | 25 | Pinch-point | 9051009-pp | 6-kant | 25 |
|
| 9041010-pp | 3/8`` | SW16 | 32 | 32 | 27 | Pinch-point | 9051010-pp | 6-kant | 27 |
|
| 9041011-pp | 3/8`` | SW17 | 32 | 32 | 28 | Pinch-point | 9051011-pp | 6-kant | 28 |
|
| 9041012-pp | 3/8`` | SW18 | 32 | 32 | 29,5 | Pinch-point | 9051012-pp | 6-kant | 29,5 |
|
| 9041013-pp | 3/8`` | SW19 | 32 | 32 | 30,5 | Pinch-point | 9051013-pp | 6-kant | 30,5 |
|
Anwendungsgebiete
Vielfältige Einsatzmöglichkeiten
Zuhause in fast jeder Montagelinie. Zuverlässig mit hohen Standzeiten und dem covertec-Schutzmechnismus.
