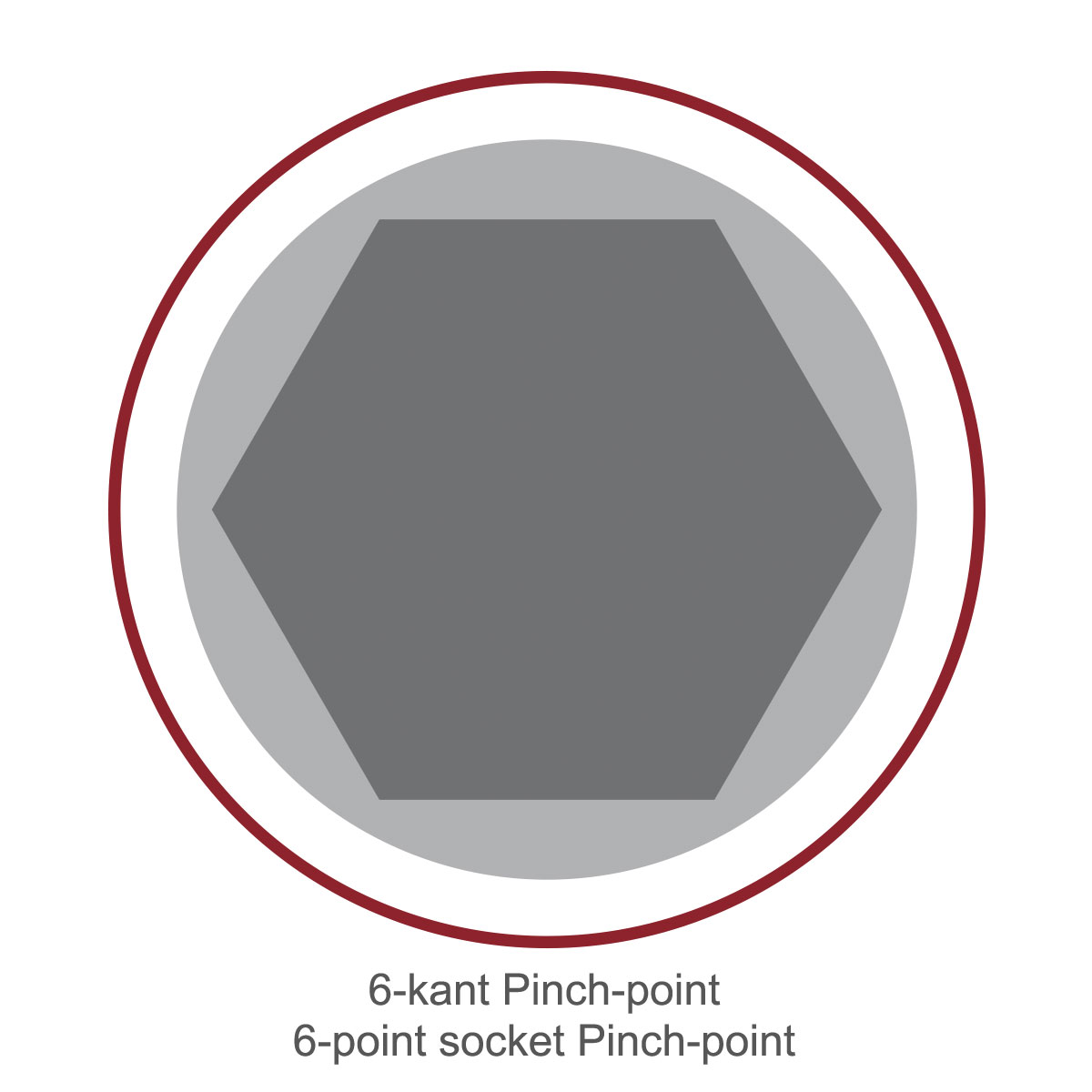

Steckschlüssel 6-kant L50, Pinch-point
covertec Steckschlüssel mit 3/8" Antrieb für 6-kant Schraubenköpfe, Länge 50 mm mit Pinchpoint.

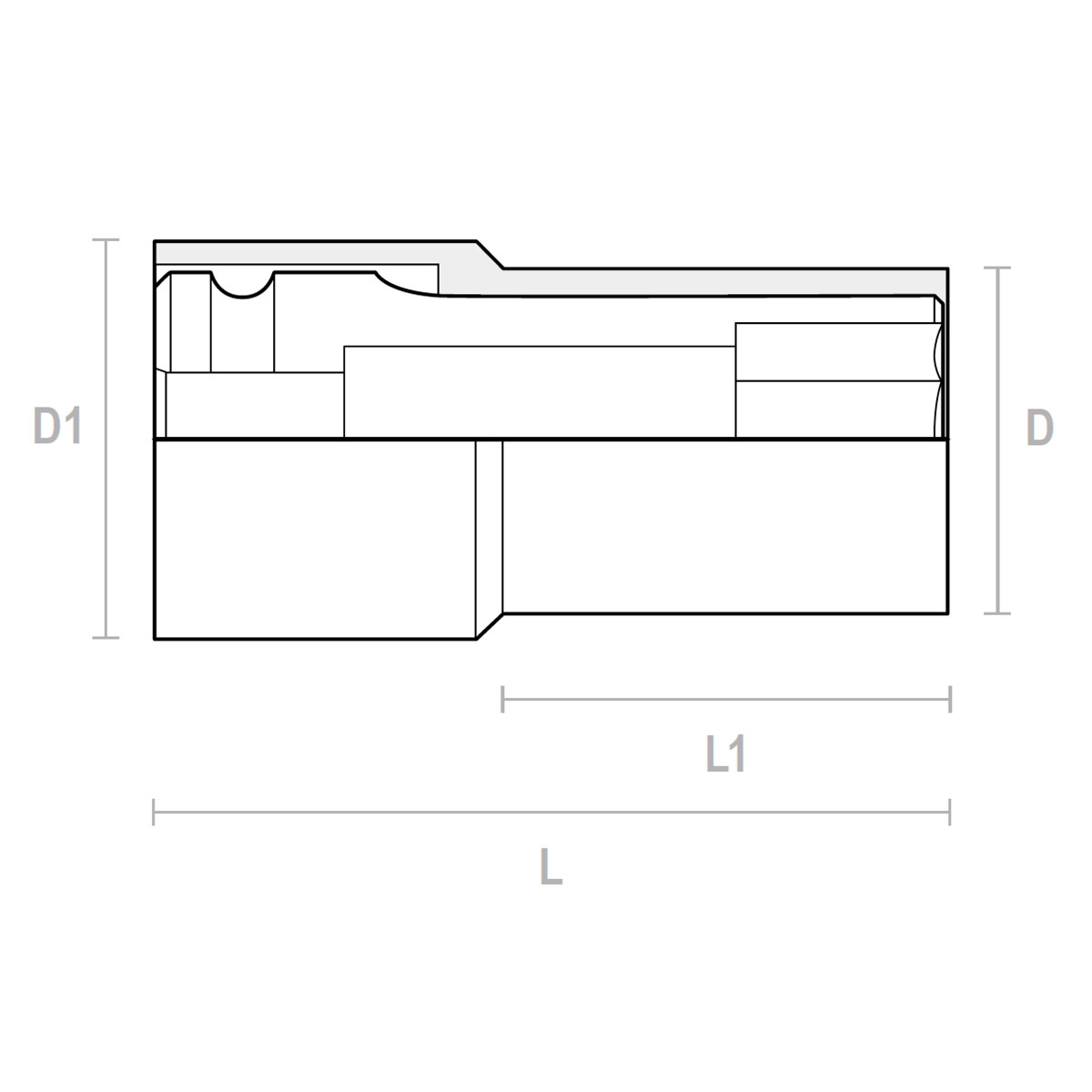

Technische Daten & Ausführungen
| Code | Antrieb | Abtrieb 1 | Länge 1 | Länge 2 | D1 | covertec /art | Ersatzhülsen | Schraubenkopf | D (Abtrieb) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9041067-pp | 3/8`` | SW8 | 50 | 25 | 22 | Pinch-point | 9051067-pp | 6-kant | 16 |
|
| 9041068-pp | 3/8`` | SW9 | 50 | 30 | 22 | Pinch-point | 9051068-pp | 6-kant | 16,5 |
|
| 9041028-pp | 3/8`` | SW10 | 50 | 26 | 22 | Pinch-point | 9051028-pp | 6-kant | 18 |
|
| 9041069-pp | 3/8`` | SW11 | 50 | 30 | 22 | Pinch-point | 9051069-pp | 6-kant | 19,5 |
|
| 9041070-pp | 3/8`` | SW12 | 50 | 50 | 22 | Pinch-point | 9051070-pp | 6-kant | 22 |
|
| 9041029-pp | 3/8`` | SW13 | 50 | 28 | 25,5 | Pinch-point | 9051029-pp | 6-kant | 22 |
|
| 9041071-pp | 3/8`` | SW14 | 50 | 30 | 23,2 | Pinch-point | 9051071-pp | 6-kant | 25 |
|
| 9041072-pp | 3/8`` | SW15 | 50 | 50 | 26 | Pinch-point | 9051072-pp | 6-kant | 26 |
|
| 9041041-pp | 3/8`` | SW16 | 50 | 50 | 26 | Pinch-point | 9051041-pp | 6-kant | 26 |
|
| 9041073-pp | 3/8`` | SW17 | 50 | 50 | 26,8 | Pinch-point | 9041073-pp | 6-kant | 26,8 |
|
| 9041074-pp | 3/8`` | SW18 | 50 | 35 | 27 | Pinch-point | 9051074-pp | 6-kant | 28,5 |
|
| 9041075-pp | 3/8`` | SW19 | 50 | 35 | 27 | Pinch-point | 9051075-pp | 6-kant | 29,5 |
|
| 9041076-pp | 3/8`` | SW21 | 50 | 35 | 26 | Pinch-point | 9051076-pp | 6-kant | 32 |
|
| 9041077-pp | 3/8`` | SW22 | 50 | 34 | 26 | Pinch-point | 9051077-pp | 6-kant | 33,4 |
|
| 9041078-pp | 3/8`` | SW24 | 50 | 34 | 26 | Pinch-point | 9051078-pp | 6-kant | 35 |
|
Anwendungsgebiete
Vielfältige Einsatzmöglichkeiten
Zuhause in fast jeder Montagelinie. Zuverlässig mit hohen Standzeiten und dem covertec-Schutzmechnismus.
